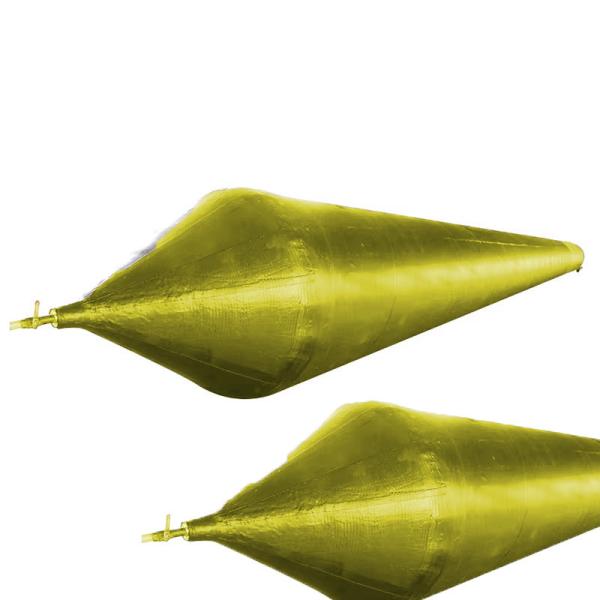

Natural Rubber Airbag for Shipyard Ship Launching with Hinge Marine Supplies for Boat
Description
Marine air bags are specialized inflatable devices that aid in maritime operations, particularly in launching vessels or transporting heavy machinery. Their design incorporates high quality materials that provide exceptional buoyancy and durability, ensuring they withstand the challenges posed by marine environments. Marine air bags provide a safe and effective method for moving ships with minimal risk of damage. They can be easily inflated at the site of operation, making them highly versatile and convenient for maritime workers. By using these air bags, maritime companies can significantly enhance productivity while ensuring safety for their crew and equipment.
Specifications
| Product Name | Marine Air Bag |
| Material | 100% High Tensile NR |
| Dimensions | Diameter 0.5m - 3.0m, Length 3.0m - 28.0m, or as Request |
| Working Pressure | 0.05-0.25MPA |
| Technology | Overall Winding, High Pressure, Explosion-proof |
| Metal Parts | Q355 / SS304 / SS316 |
| OEM | Supported |
| MOQ | 1 |
| Repair Tools | Electric Heating Plate, Repair Materials, Glue, Free of Charge |
| Standard | ISO14409:2011 |
| Certificate | ABS, BV, KR, LR, GL, NK, RINA, DNV, RMRS |
| Package | Pallets, Wooden Cases |
| Service Life | 20 Years |
| Warranty | 36 Months |
| Diameter | Working Pressure | Working Height | Bearing Capacity |
| KN/m | Ton/m |
| D=1.0m | 0.14Mpa | 0.6m | 87.96 | 8.98 |
| 0.5m | 109.96 | 11.22 |
| 0.4m | 131.95 | 13.46 |
| D=1.2m | 0.12Mpa | 0.7m | 94.25 | 9.62 |
| 0.6m | 113.10 | 11.54 |
| 0.5m | 131.95 | 13.46 |
| 0.4m | 150.80 | 15.39 |
| D=1.5m | 0.10Mpa | 0.9m | 94.25 | 9.62 |
| 0.8m | 109.96 | 11.22 |
| 0.7m | 125.66 | 12.82 |
| 0.6m | 141.37 | 14.43 |
| 0.5m | 157.08 | 16.03 |
| D=1.8m | 0.09Mpa | 1.1m | 98.96 | 10.10 |
| 1.0m | 113.10 | 11.54 |
| 0.9m | 127.33 | 12.98 |
| 0.8m | 141.37 | 14.43 |
| 0.7m | 155.51 | 15.87 |
| 0.6m | 169.65 | 17.31 |
| D=2.0m | 0.08Mpa | 1.2m | 100.53 | 10.26 |
| 1.1m | 113.10 | 11.54 |
| 1.0m | 125.66 | 12.82 |
| 0.9m | 138.23 | 14.11 |
| 0.8m | 150.80 | 15.39 |
| 0.7m | 163.36 | 16.67 |
| 0.6m | 175.93 | 17.95 |
| * Other size can be provided follow client's requirements. |
Features
Customizable Sizes
Marine air bags come in various sizes to cater to specific project requirements, allowing users to select the right bag for their particular application.
Weather Resistance
Built to withstand harsh marine conditions, including saltwater exposure, marine air bags demonstrate superior resistance to corrosion and degradation.
Minimized Vessel Damage
The cushioning effect of air bags during launching or lifting helps reduce potential damage to vessels, saving costly repairs and maintenance.
Quick Deflation
Marine air bags can be rapidly deflated after use, facilitating efficient storage and allowing them to be quickly relocated to the next job site.
Applications
● Coastal Erosion Prevention
● Beach Nourishment Projects
● Artificial Reef Construction
● Marine Archaeological Operations
● Navy and Military Operations
Advantages
Eco Friendly Practices
Our manufacturing processes are designed to minimize environmental impact, reflecting our commitment to sustainability.
Competitive Pricing
Our efficient production techniques allow us to offer high-quality marine air bags at competitive prices.
Timely Delivery
We understand the importance of meeting deadlines and consistently ensure on-time delivery for all orders.
Employee Expertise
Our skilled workforce is trained in the latest manufacturing methods and safety protocols, guaranteeing high-quality output.
FAQ
1. Can Marine Air Bags be repaired?
Yes, minor repairs can be made, but it's important to consult a professional for proper repair techniques.
2. Do Marine Air Bags require certifications?
Depending on the application, some projects may require compliance with industry standards or certifications.
3. Are Marine Air Bags environmentally friendly?
Many manufacturers focus on using eco-friendly materials and processes, minimizing environmental impact.
4. Where can I purchase Marine Air Bags?
They can be bought from specialized manufacturers, marine equipment suppliers, or directly from factories.
